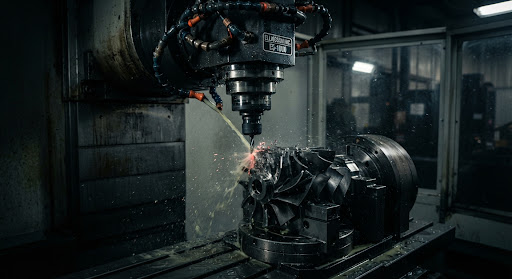

5-Axis CNC Milling
Our 5-axis capabilities allow for the complex machining of intricate aerospace components in a single setup, reducing geometric error and improving surface fidelity for mission-critical parts.
- Multi-axis simultaneous contouring
- Complex aerospace geometries
- Tight tolerance management (±0.0001")
EDM Sinker
electric_boltElectrical Discharge Machining for ultra-hard materials and intricate internal features impossible to reach with traditional cutting tools.
Precision Honing
Internal diameter precision and surface cross-hatching for hydraulic systems and engine components.
SYSTEM SPECS
CYLINDRICITY: 0.000050"
BORE RANGE: 0.060" - 6.500"
FINISH CONTROL: VARIABLE
Deburring
Technical finishing standards including microscopic inspection to ensure 100% burr-free surfaces for fluid-flow critical aerospace parts.
- HAND FINISHINGLEVEL A
- MICROSCOPIC INSP.50X
Assembly & Test
End-to-end integration and rigorous testing protocols to validate component performance under simulated operational stress.

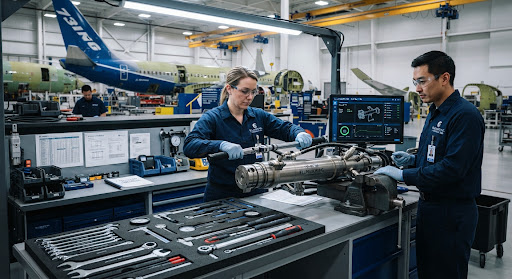

FAA/EASA Repair Station
Ellingson Inc. operates as a certified MRO facility, providing expert repair and overhaul services for structural and hydraulic aerospace assemblies. We ensure every component returns to service meeting the highest FAA and EASA safety standards.
CERTIFICATIONS
• FAA Part 145
• EASA.145.4262
• ITAR Registered
SERVICES
• Component Overhaul
• Failure Analysis
• Modification & Upgrades
Dimensional Tolerance Matrix
| CAPABILITY | PRIMARY EQUIPMENT | MAX ENVELOPE | POSITIONAL TOLERANCE |
|---|---|---|---|
| 5-Axis Milling | Matsuura MAM72-35V | 20" x 20" x 15" | ± 0.00015" |
| EDM Sinker | Mitsubishi EA8P | 12" x 10" x 10" | ± 0.00008" |
| Precision Honing | Sunnen SV-20 | Ø 0.060" - 6.500" | ± 0.00005" |
| Turning | Mori Seiki NLX 2500 | Ø 14" x 28" | ± 0.00020" |
